Akku Hybrid-Röhrenverstärker
Schaltbild

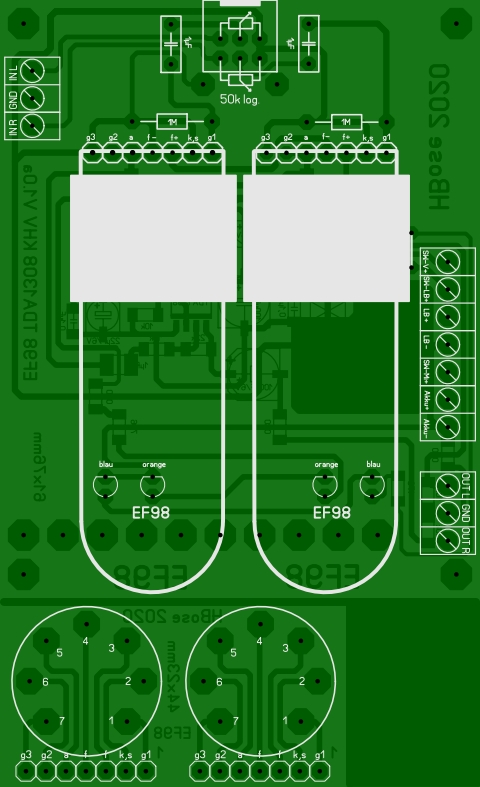

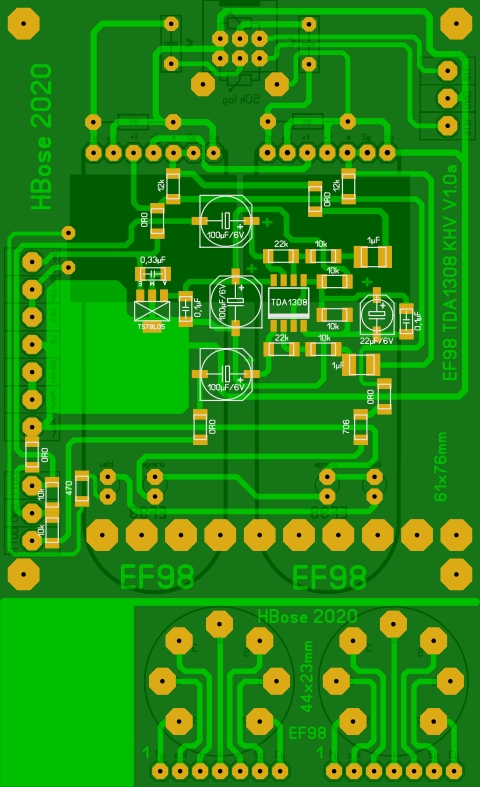

Platine Ober und Unterseite incl. Adapterplatine für die Röhre.
Bauteilliste
| Menge | Wert | Bauform | Teilenummer |
| 2 | 1µF | 63V RM5 | C1, C11 |
| 2 | 1µF | 16V SMD 1206 | C3,C10 |
| 1 | 0,33µF | 16V SMD 1206 | C2 |
| 3 | 100µF/6V | SMD | C4, C6, C9 |
| 2 | 0,1µF | 16V SMD 1206 | C5, C7 |
| 1 | 22µF/6V | SMD | C8 |
| 10 | 1,2V/2000mah | ENELOP NiMH AA | G1 |
| 1 | LM78L05 | SMD | IC1 |
| 1 | TDA1308 | SMD | IC2 |
| 1 | Ladebuchse | 5,5/2,1mm Hohlbuchse | J1 |
| 2 | LED | Flach Blau | LED1, LED2 |
| 2 | LED | Flach Orange | LED3, LED4 |
| 2 | 50k | log. Alps | R1, R1' |
| 1 | 820 | SMD 1206 | R11 |
| 2 | 1M | Metallschicht Widerstand | R2, R15 |
| 2 | 12k | SMD 1206 | R3, R14 |
| 1 | 470 | SMD 1206 | R4 |
| 6 | 10k | SMD 1206 | R5, R7, R8, R9, R10, R13 |
| 2 | 22k | SMD 1206 | R6, R12 |
| 5 | 0R0 | SMD 1206 | |
| 1 | SWMI | Schalter ein/aus/ein | S1 |
| 2 | EF98 | EF98 Röhre incl. Fassung | V1, V2 |
| 2 | 3,5mm | Klinkenbuchse | X1, X1' |
