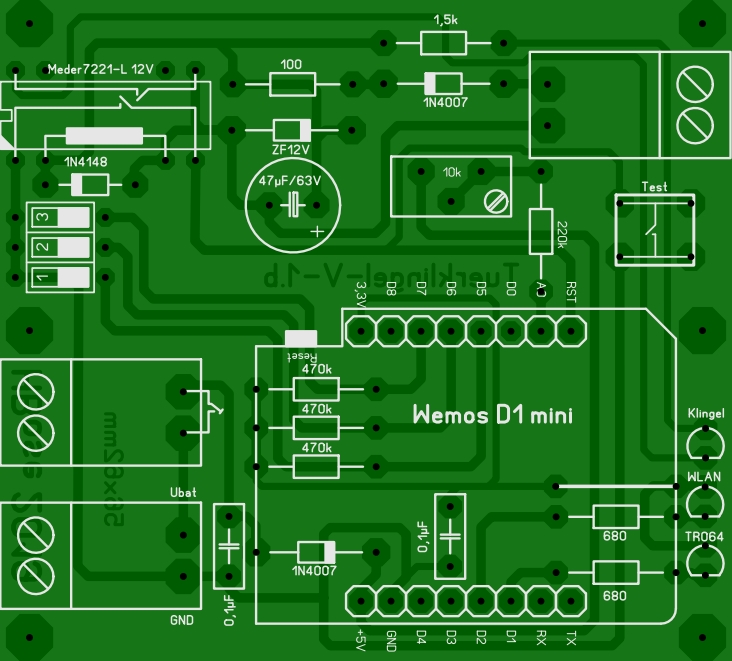

Platine Bestückungsseite

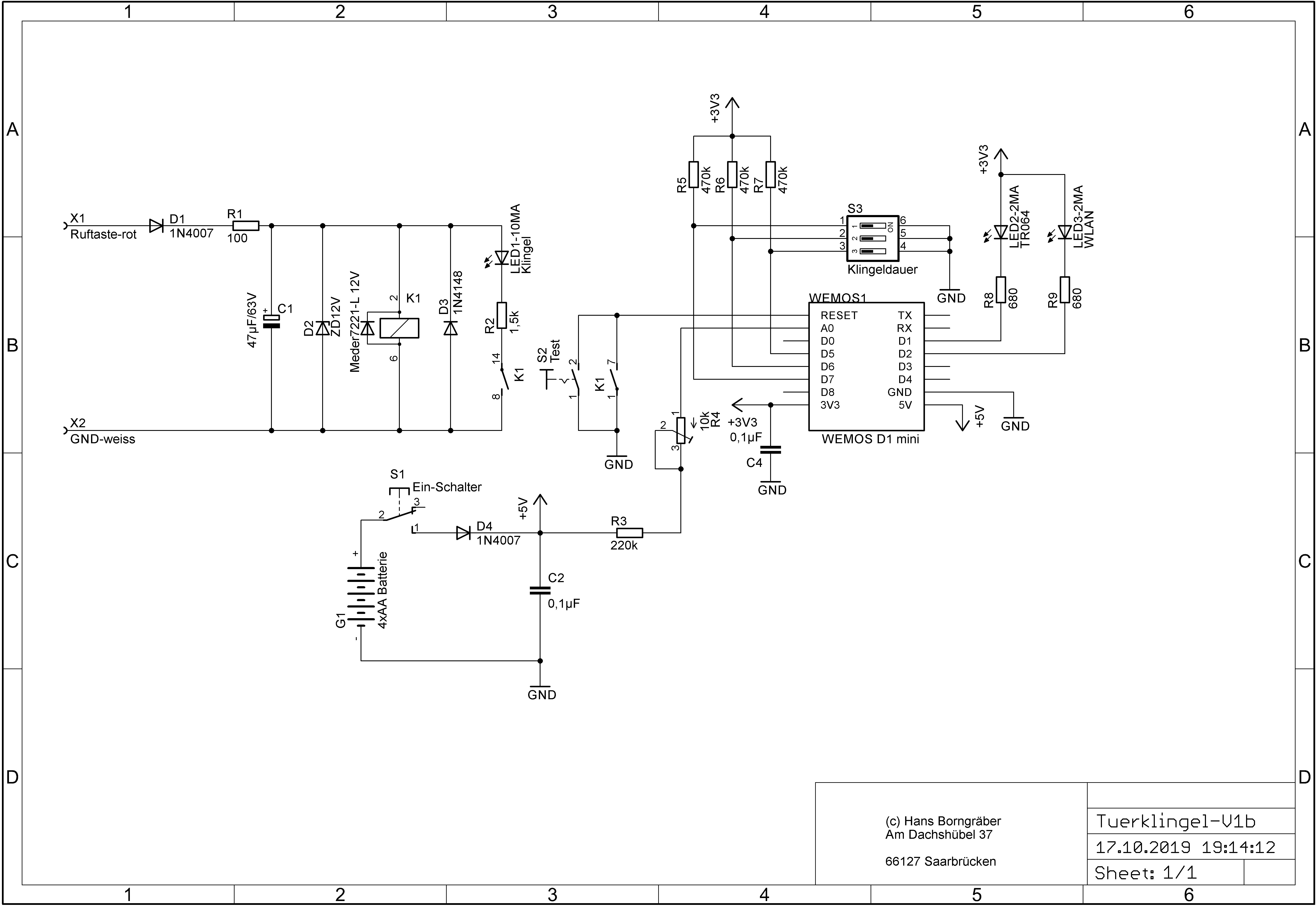

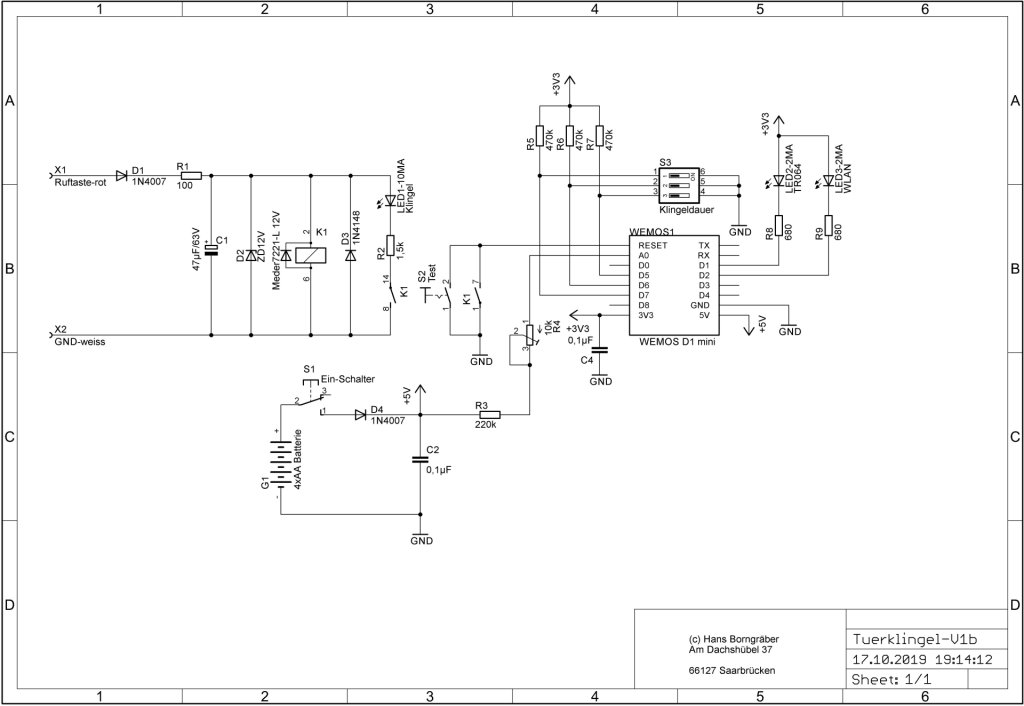

Bauteil-Liste
| Menge | Wert | Bauteil | Gehäuse | Nummer |
| 1 | 47µF/63V | Elko | RM 2,5 | C1 |
| 3 | 0,1µF | Keramik | RM 5 | C2, C3, C4 |
| 2 | 1N4007 | Diode | RM 10 | D1, D4 |
| 1 | ZD12V | Zenerdiode | RM 7,5 | D2 |
| 1 | 1N4148 | Diode | RM 7,5 | D3 |
| 4 | Batterie | 1,5V Batterie | AA | G1 |
| 1 | Meder7221-L 12V | Relais 2xSchliesser | DIP | K1 |
| 1 | Klingel | LED grün 10mA | 3mm | LED1-10MA |
| 1 | TR064 | LED rot 2mA | 3mm | LED2-2MA |
| 1 | WLAN | LED rot 2mA | 3mm | LED3-2MA |
| 1 | 100 | Widerstand 1/4W | RM 10 | R1 |
| 1 | 1,5k | Widerstand 1/4W | RM 10 | R2 |
| 1 | 220k | Widerstand 1/4W | RM 10 | R3 |
| 1 | 10k | Trimmer | stehend | R4 |
| 3 | 470k | Widerstand 1/4W | RM 10 | R5, R6, R7 |
| 2 | 680 | Widerstand 1/4W | RM 10 | R8, R9 |
| 1 | Ein-Schalter | Kippschalter | S1 | |
| 1 | Test | Taster | 6mm | S2 |
| 1 | Klingeldauer | Dip-Switch | DA-03 | S3 |
| 1 | WEMOS D1 mini | WEMOS-D1-MINI | WEMOS-D1-MINI | WEMOS1 |
| 3 | Steckklemme | 2 polig |
