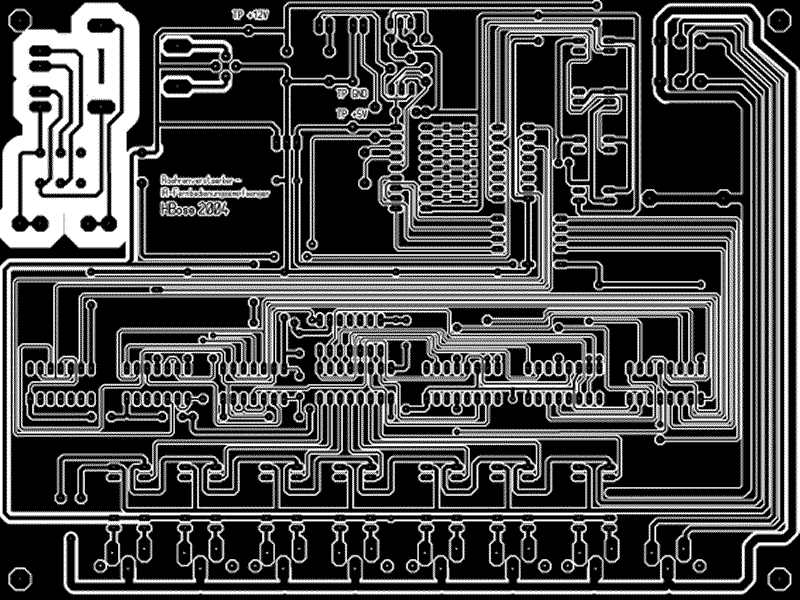

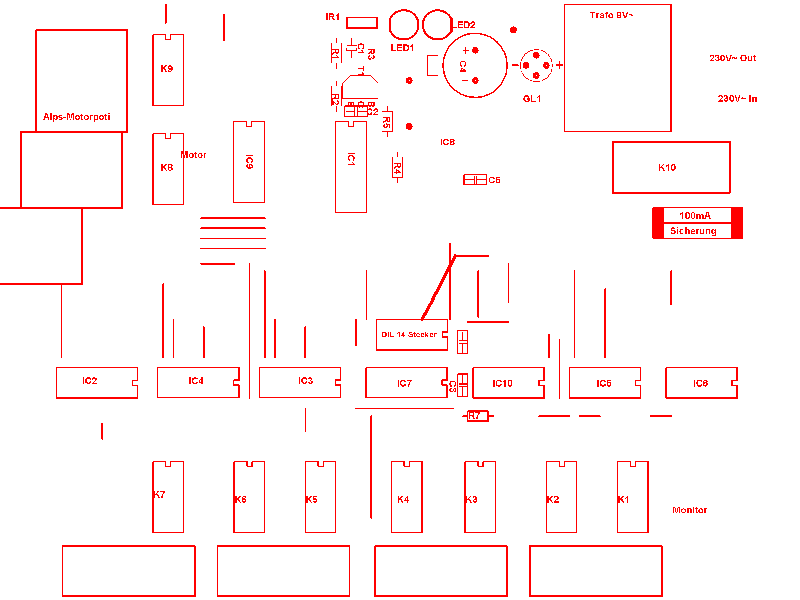

Stückliste
IR
Fernbedienung Empfänger
| Menge | Wert | Bauteile |
| 1 | 14
Pol DIL Stecker |
SV1 |
| 10 | Meder
DIL Relais 12V DIP12-2A72-21L |
K1,
K2, K3, K4, K5, K6, K7, K8, K9 |
| 1 |
Finder Relais 41.52.9.012.0000 |
K10 |
| 2 | Schraubklemmen
Raster 3,08mm |
X1, X2 |
| 1 | B80C2200 |
B1 |
| 1 | 9V
2,8VA |
TR1 |
| 1 | HT12D
Holtek |
IC1 |
| 1 | TSOP
1738 o.ä. |
IR1 |
| 1 | 50k
Alps Poti |
R6 |
| 1 |
10µF/10V |
C1 |
| 1 | 0,1µF | C2,
C3, C5 |
| 1 |
2200µF/25V |
C4 |
| 1 | 3mm Grün | LED1 |
| 1 | 3mm Rot | LED2 |
| 1 | 10 | R3 |
| 1 | 10k | R1 |
| 1 | 39k | R4 |
| 2 | 100k | R2, R7 |
| 2 |
1k |
R5,R8 |
| 1 | 100mA
incl.Halter |
SI1 |
| 1 | 4001N | IC5 |
| 1 | 4011N | IC10 |
| 1 | 4013N | IC6 |
| 1 | 4028N | IC2 |
| 2 | 4042N | IC3, IC4 |
| 2 |
ULN2003A |
IC7, IC9 |
| 1 | LM 7805 | IC8 |
| 1 | BC640 | Q1 |
| 4 |
CINCH
Doppelbuchsen Print |
BU1-BU16 |
| 2 | CINCH
Einfachbuchsen |
BU17, BU18 |
| 1 | Platine
200 x 150 mm |
Epoxy |

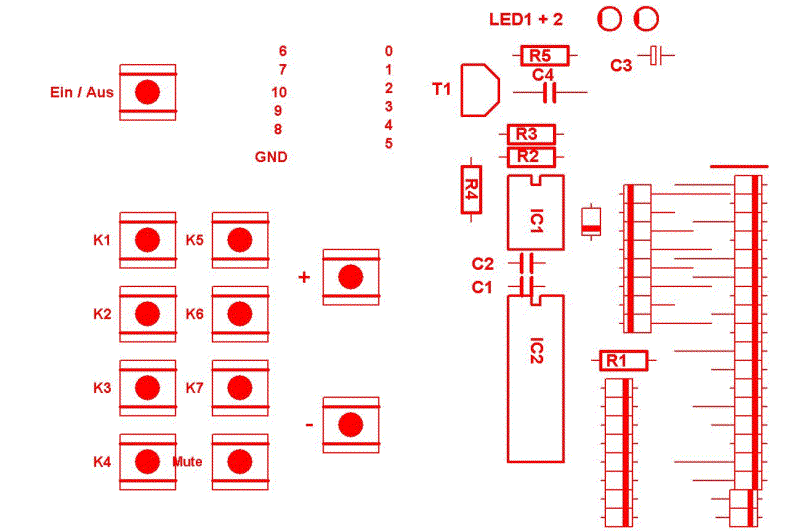

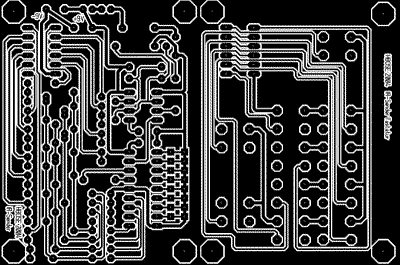

Stückliste IR Fernbedienung Sender
| Menge | Wert | Bauteile |
| 11 | Miniaturtaster |
S2,
S3, S4, S5, S6, S7, S8, S9, S10, S11, S12 |
| 1 | 9V
Block |
BAT1 |
| 1 | 1M | R1 |
| 36 | 1N4148 | D1 - D36 |
| 1 | 10 | R5 |
| 2 | 10k | R3, R4 |
| 1 | 10nF | C2 |
| 1 | 100k | R2 |
| 1 | 100nF | C1 |
| 1 | 220µF/10V | C3 |
| 1 | 220pF | C4 |
| 1 | BC337 | T1 |
| 1 | HT12E | IC2 |
| 1 | LD271 | LED1 |
| 1 | LD271 | LED2 |
| 1 | NE555N | IC1 |
| 1 | Platine 110 x 72 mm |
Epoxy |
Stückliste Nixie
Anzeige
| Menge | Wert | Bauteile |
| 1 | 14
pol. DIL-Stecker |
SV1 |
| 1 | Meder
DIL Relais 12V DIP12-2A72-21L |
K1 |
| 1 | 3 x 1 Ohm= 0,33/1W | R3 |
| 1 | 1M | R4 |
| 1 | 8,2k | R5 |
| 1 | 10µF/350V | C2 |
| 1 | 10k | R7 |
| 1 | 100nF/250V | C3 |
| 1 | 330µH | L1 |
| 2 | 330 | R1, R2 |
| 1 | 470k | R6 |
| 1 | 470pF | C1 |
| 1 | BA157 | D1 |
| 1 | BC550B | Q1 |
| 1 | BC560 | Q3 |
| 1 | IRF830 | Q2 |
| 1 | MC34063 | IC1 |
| 2 | ULN2003AN | IC2, IC3 |
| 1 | Z590M
Nixie o.ä |
AN1 |
| 1 |
Lochrasterplatte 50 x 100mm |
Pertinax |
