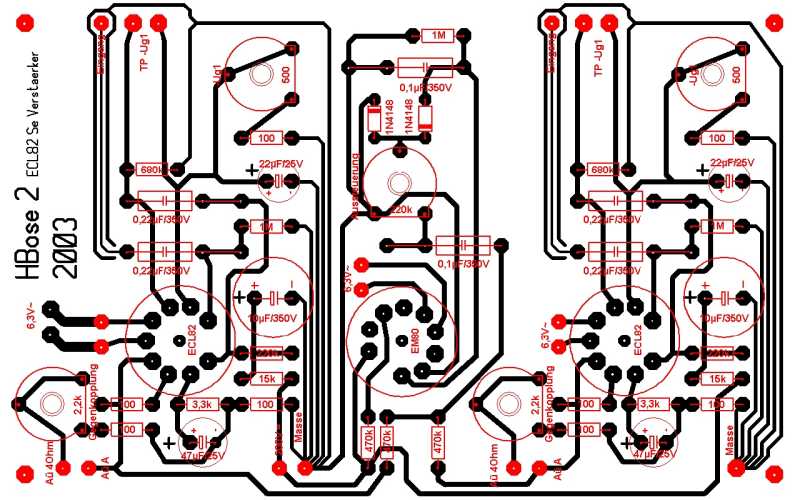

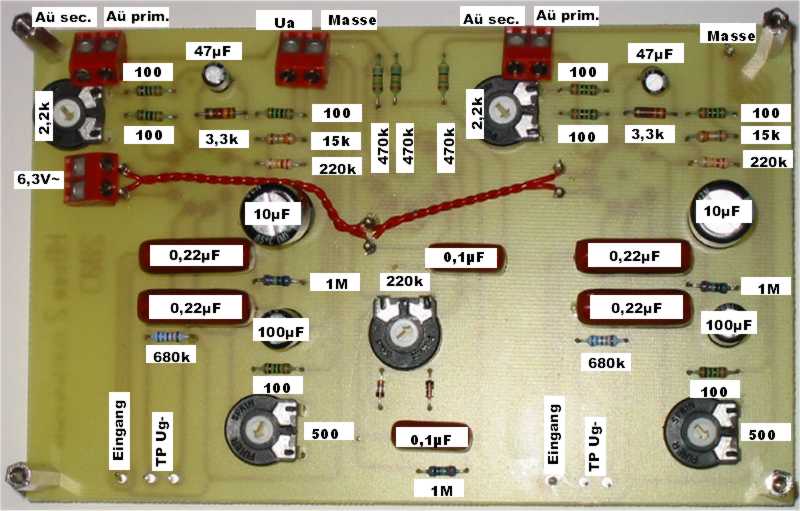

ECL 82 Version 2 Plan + Bauteilliste
|
Nummer
|
Wert
|
Nummer
|
Wert
|
|
B1
|
B280C100 |
R7/107
|
3,3k |
|
C1/101
|
10µF/350V |
R8/108
|
500 Trim. |
|
C2/102
|
0,22µF/350V |
R9/109
|
680k |
|
C3/102
|
0,22µF/350V |
R10/110
|
100 |
|
C4/104
|
47µF/50V |
R11/111
|
100 |
|
C5/105
|
100µF/50V |
R12
|
470k |
|
C6
|
0,1µF/350V |
R13/113
|
2,2k Trim. |
|
C7
|
220µF/450V |
R14/114
|
100 |
|
C8
|
220µF/450V |
R15
|
220k |
|
C9
|
0,1µF/450V |
R16/116
|
1M |
|
D1
|
1N4148 |
R17
|
1,5k/11W |
|
D2
|
1N4148 |
R18
|
220 Trim. |
|
LSP1
|
Lautspr.4ohm |
R19
|
470k |
|
R1/101
|
15k/2W |
S1
|
2 xEin Schalter |
|
R2/102
|
220k |
SI1
|
500mA/tr. |
|
R3/103
|
100 |
SP1
|
4 Ohm |
|
R4/104
|
50k log Poti |
V1
|
ECL82 |
|
R5
|
470k |
V2
|
EM80 |
|
R6
|
1M |
V3
|
ECL82 |
