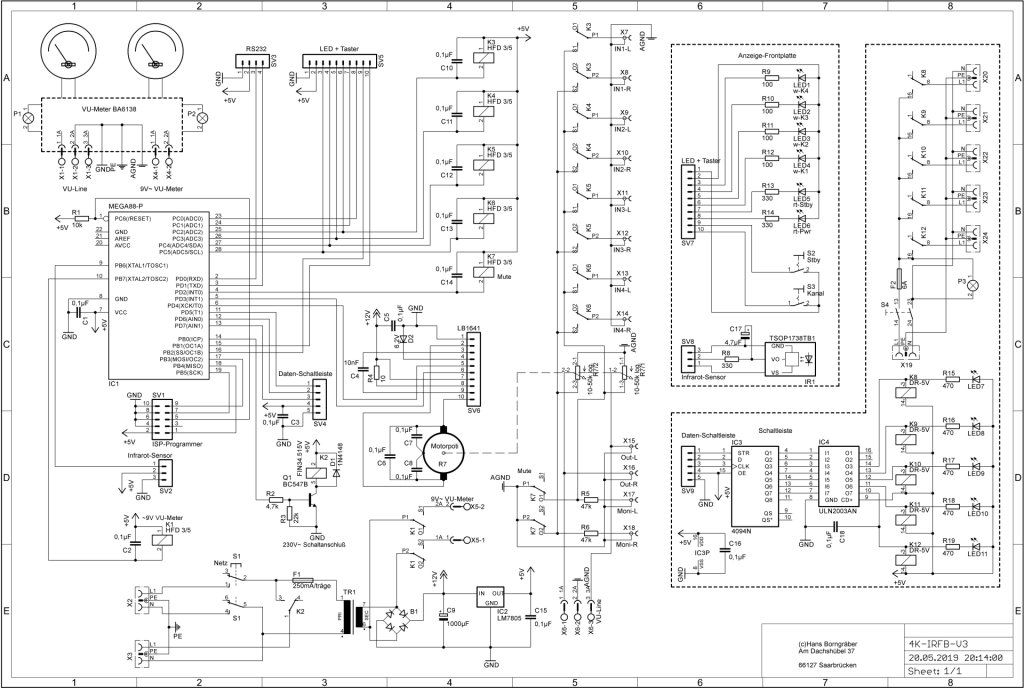

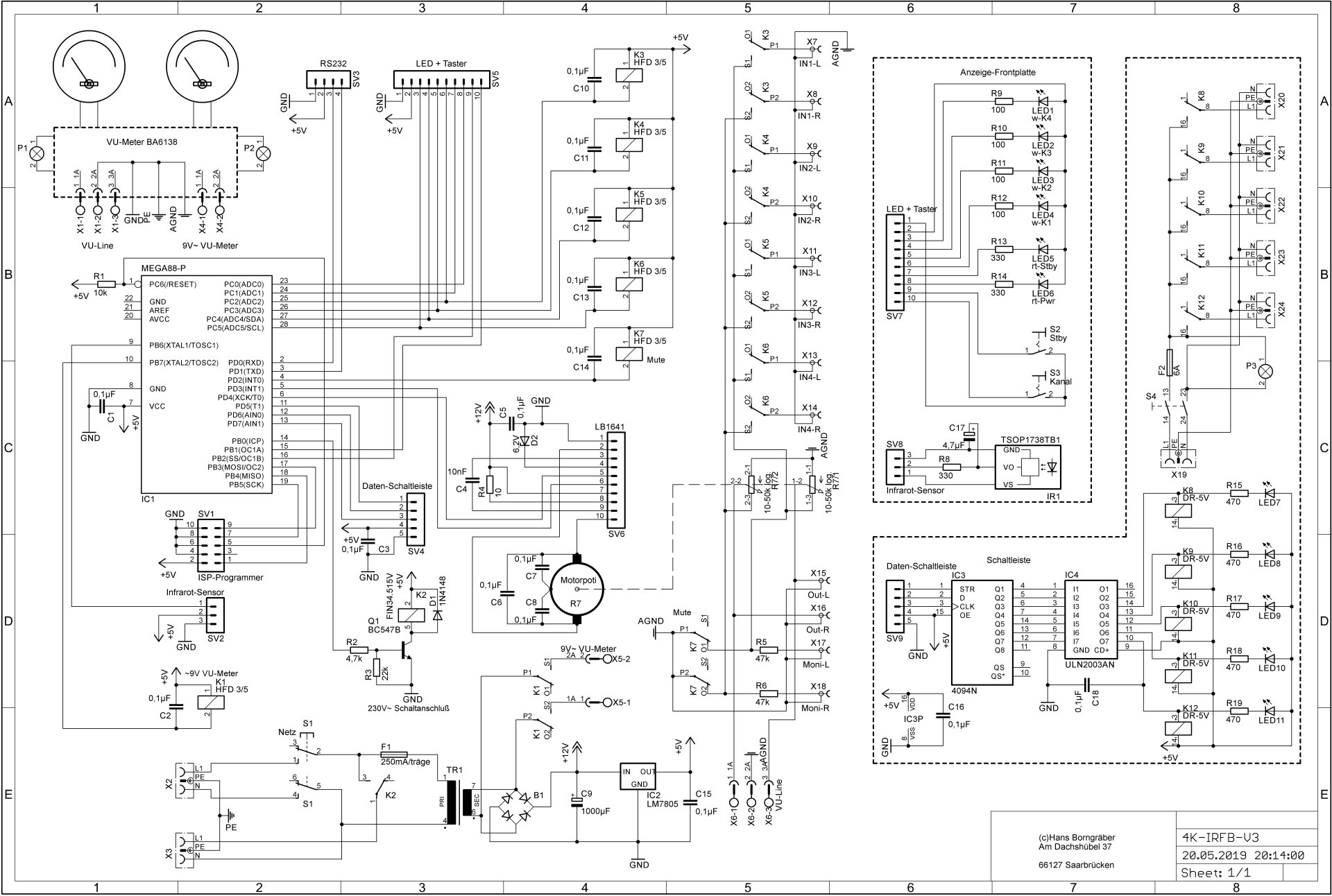

Infrarot Steuerzentrale Pläne

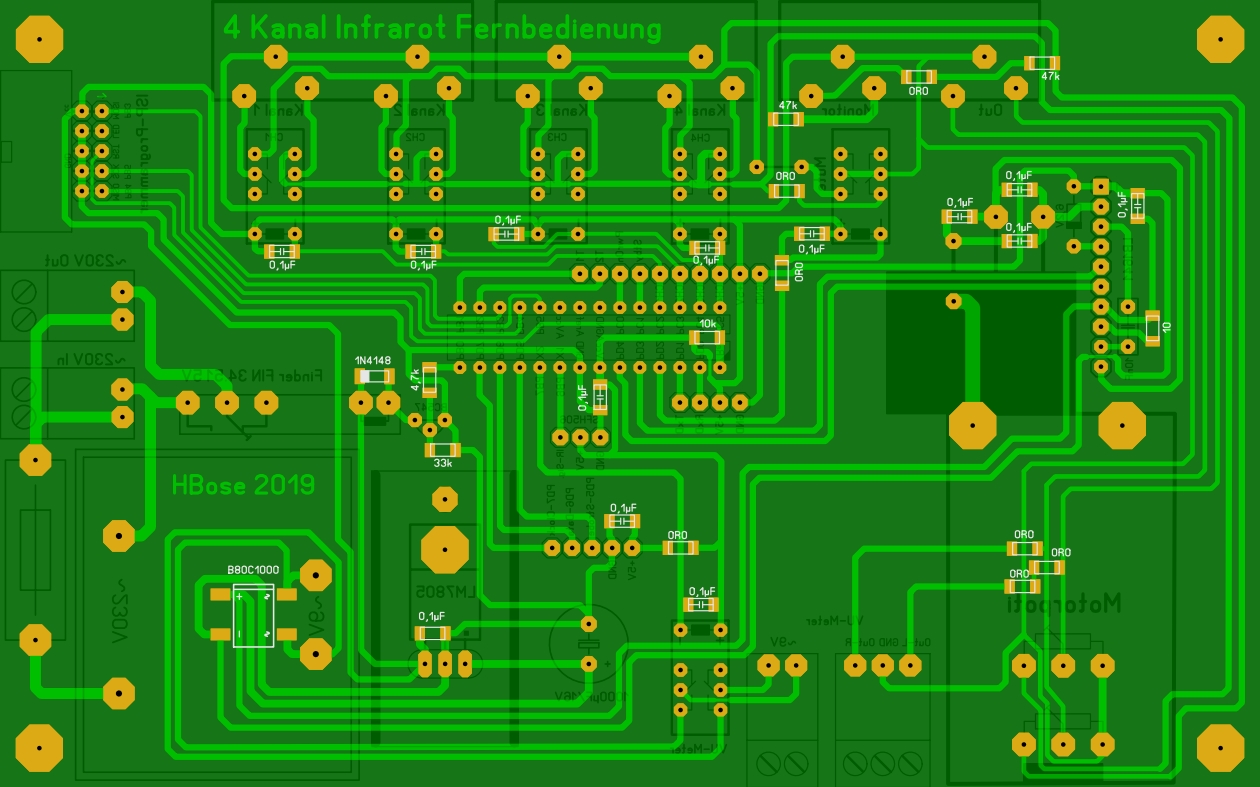

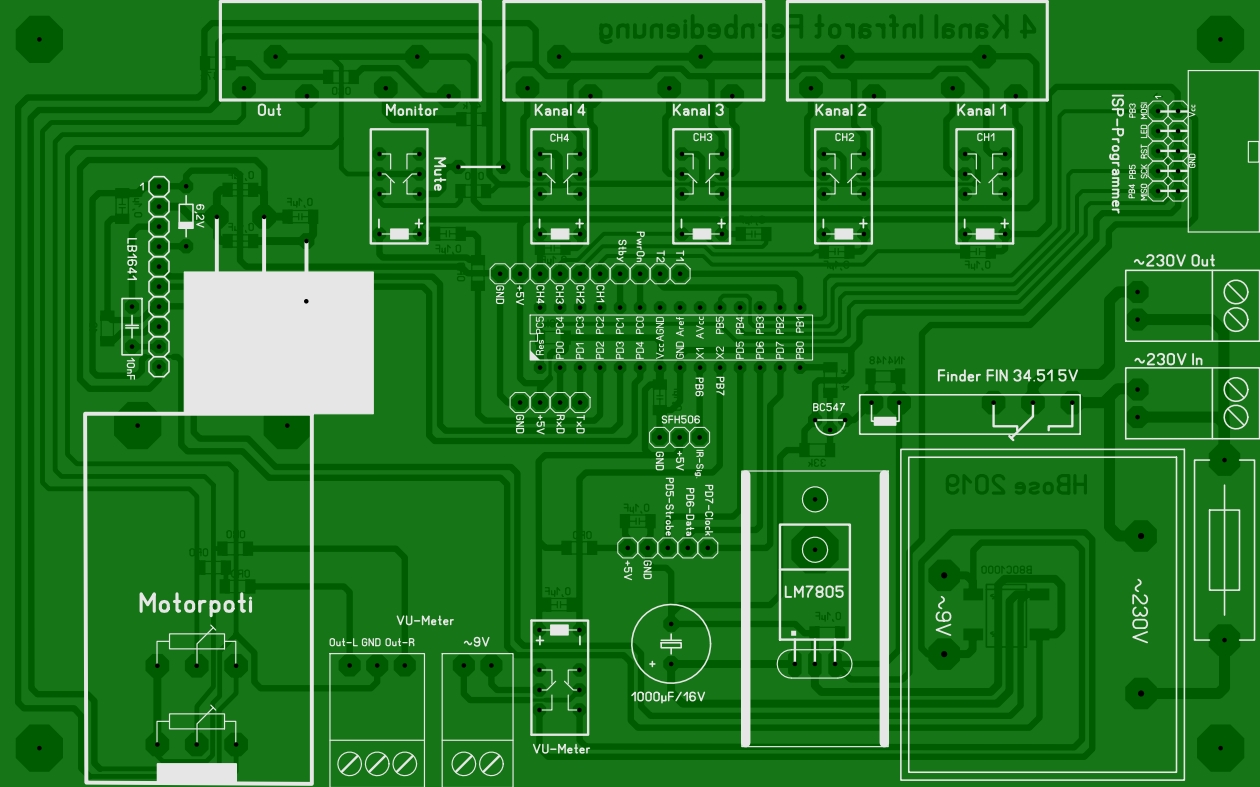

Bestückung Hauptplatine

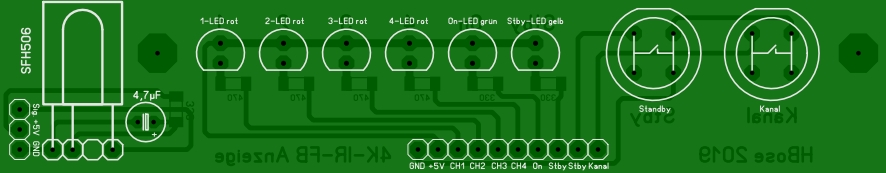

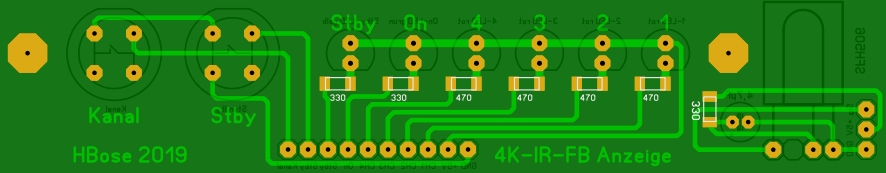

Bestückung LED Platine

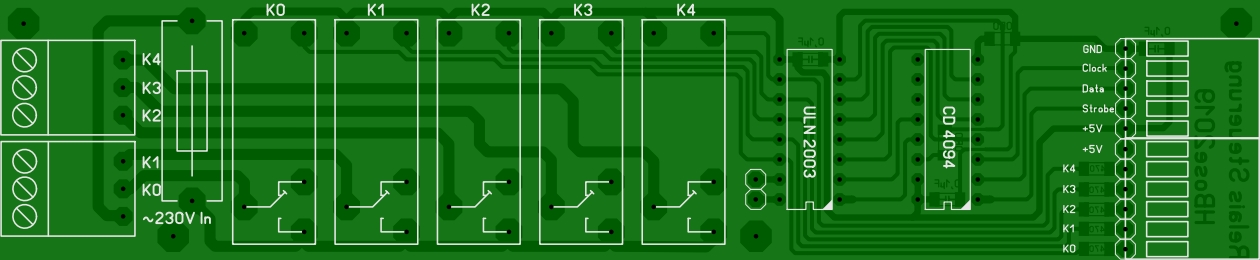

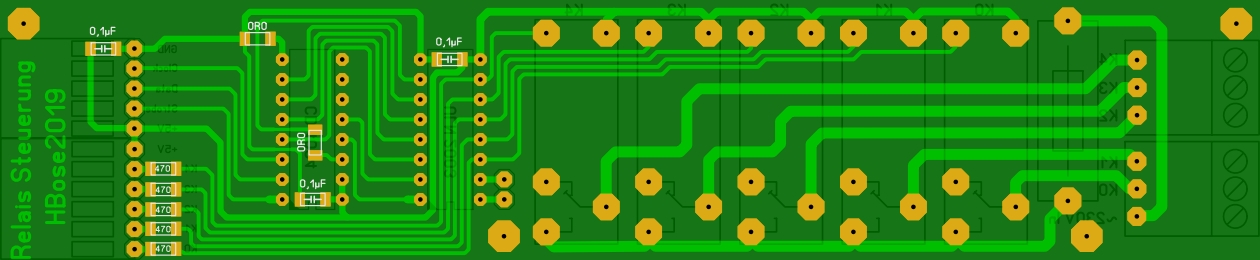

Bestückung Relais Platine Steckerleiste
Bauteile ohne Steckverbinder und mechanische Teile
| Menge | Wert | Bauteil | Bauteil-Nummer |
| 1 | B80C100 | DIL-Gleichrichter | B1 |
| 15 | 0,1µF | 1206 SMD Kondensator | C1, C2, C3, C5, C6, C7, C8,
C10, C11, C12, C13, C14, C15, C16, C18 |
| 1 | 4,7µF | Elko | C17 |
| 1 | 10nF | Kondensator | C4 |
| 1 | 1000µF | Elko | C9 |
| 1 | 1N4148 | Mini-Melf Diode | D1 |
| 1 | 6,2V | Zenerdieode | D2 |
| 1 | 250mA/träge | Sicherung incl. Halter | F1 |
| 1 | 6A/träge | Sicherung incl. Halter | F2 |
| 1 | MEGA88-P | ATMega 88 | IC1 |
| 1 | LM7805 | Spannungsregler | IC2 |
| 1 | 4094N | Schieberegister | IC3 |
| 1 | ULN2003AN | Darlington Treiber | IC4 |
| 1 | TSOP1738TB1 / SFH506 | IR-Empfänger 36 kHz | IR1 |
| 6 | HFD 3/5 | Relais | K1, K3, K4, K5, K6, K7 |
| 1 | FIN34.515V | Relais | K2 |
| 5 | DR-5V | Relais | K8, K9, K10, K11, K12 |
| 1 | w-K4 | LED5MM | LED1 |
| 1 | w-K3 | LED5MM | LED2 |
| 1 | w-K2 | LED5MM | LED3 |
| 1 | w-K1 | LED5MM | LED4 |
| 1 | rt-Stby | LED5MM | LED5 |
| 1 | rt-Pwr | LED5MM | LED6 |
| 5 | Kanalanzeige | LED5MM | LED7, LED8, LED9, LED10, LED11 |
| 1 | BC547B | Transistor | Q1 |
| 1 | 10k | 1206 SMD Widerstand | R1 |
| 5 | 470 | 1206 SMD Widerstand | R15, R16, R17, R18, R19 |
| 1 | 4,7k | 1206 SMD Widerstand | R2 |
| 1 | 22k | 1206 SMD Widerstand | R3 |
| 1 | 10 | 1206 SMD Widerstand | R4 |
| 2 | 47k | 1206 SMD Widerstand | R5, R6 |
| 1 | 10-50k log. | Motopoti Alps log. | R7 |
| 3 | 330 | 1206 SMD Widerstand | R8, R13, R14 |
| 4 | 100 | 1206 SMD Widerstand | R9, R10, R11, R12 |
| 1 | Zentraler | Netzschalter | S1 |
| 1 | Stby | Taster | S2 |
| 1 | Kanal | Taster | S3 |
| 1 | Steckerleiste | Netzschalter | S4 |
| 1 | LB1641 | H-Brücke | SV6 |
| 1 | 9V 4,8VA | Transformator RM25 | TR1 |
